OHKURA 大仓控制器 EC5908R10000
- OHKURA 大仓控制器 EC5908R10000

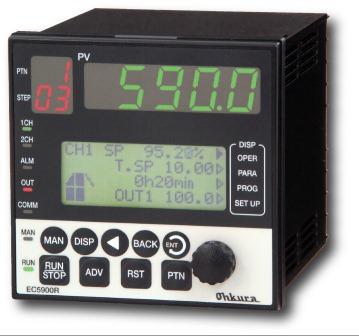

EC5900R数字可程控器
产品说明
高精度: ±0.1%+1 digit
双信道独立控制
图型化显示和程序组设定
人性化的显示和操作
LCD(宽广范围)显示：16位x 4行清晰显示和操作性佳同时显示处理程序变量,设定点,剩余时间,和其它相关参数应用
高速控制周期：100ms
可切换程序组的时间单位(分或秒)
多功能输入(热电偶,RTD,电压或电流),多功能输出
项目：EC5900R
信 道 数：1
取样周期：100ms
输入信号：B、R、S、K、E、J、T、WRe5-26、N、PR40-20、PLⅡ、U、L、Au-Fe、±10、0~20、0~50mV、0~1、0~5、1~5、0~10VDC、4~20mA、Pt100、JPt100
精 确 度：±0.1%＋小数点下1位
噪音减少率：常模抑制比(NMRR)：60dB，共模抑制比(CMRR)：140dB
程序组数量：最多19组
程序段数量：最多400段
设定方法：X-Y型式藉由设定时间和目标设定值
设定范围：设定点:整个输入范围大小时间设定：0h00min~399h59min/0h00min00s~5h59min59s(可切换)
重复动作：最多重复999次
接点数量：1点＋1点(选购)
输出型式：继电器：A接点，耐电压250VAC，耐电流3A
接点数量：5点(继电器型式)＋10点(晶体管集极开路型式，选购)
接点数量：4点＋8点(选购)；干接点输入15VDC 1mA
模拟输出：0~20mADC或4~20mADC
传感器电源：最大DC24V 24mA
通讯接口：RS-232C，RS-422A，RS-485
扩充机能：局域网络，2.5Mbps，20点
DI/DO扩充：DI共7个干接点输入，DO共8点(1A,250VAC)
电源供应：100~240VAC,50/60Hz
消耗功率：20VA
产品尺寸：96mm(宽)x96mm(高)x115mm(深)
产品重量：约1.9公斤
工作条件：-10~55°C
