- FLUKE725Ex本安型多功能过程校准器/校验仪

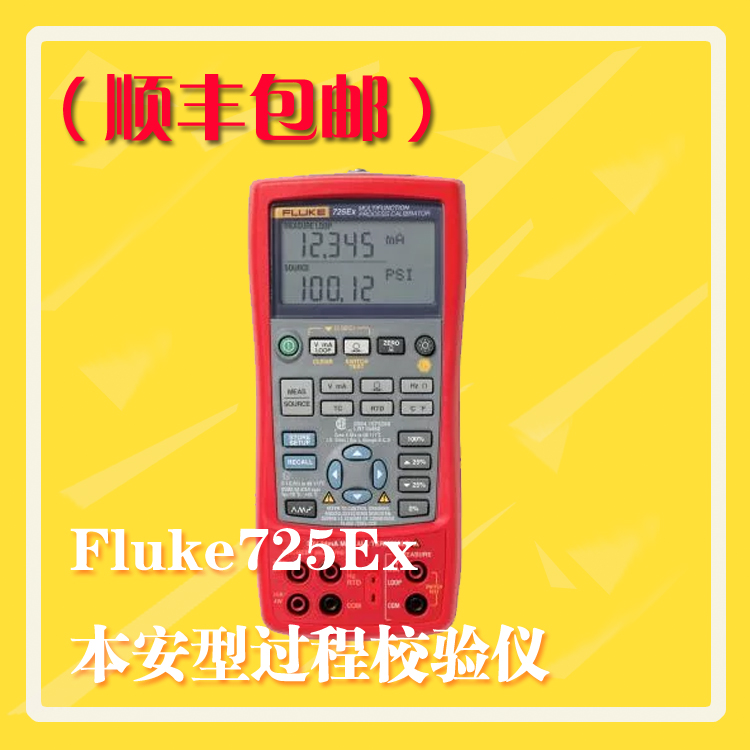

725Ex 本安型多功能过程校准器/校验仪
測量精度
直流電壓
30.000 V 0.02%+ 2 位元 (upper display)
10.000 V 0.02%+ 2 位元 (lower display)
90.00 mV 0.02%+ 2 位元
-10.00 mV 至 75.00 mV 0.025 % + 1 位元 (via TC connector)
直流電流
24.000 mA 0.02%+ 2 位元
電阻
0.0 至 400.0 Ω 0.1Ω (4線), 0.15Ω (2線和3線)
401 至 1500 Ω 0.5Ω (4線), 1Ω (2線和3線)
1500 至 3200 Ω 1Ω (4線), 1.5Ω (2線和3線)
頻率
2.0 至 1000.0 CPM 0.05 % + 1 位元
1.0 至 1100.0 Hz 0.05 % + 1 位元
1.00 至 10.00 kHz 0.05 % + 1 位元
靈敏度 1 V peak-to-peak-minimum
壓力
準確度 from 0.025% of range using any of 8 intrinsic safe pressure modules.
(for detailed specifications refer to pressure modules in options and accessories)
Modules available for differential, gauge, vacuum, absolute, dual and high pressure.
輸出準確度
直流電壓
100.00 mV 0.02%+2 位元
10.000 V 0.02%+2 位元
-10.00 mV 至 75.00 mV 0.025 % + 1 位元 (via TC connector)
直流電流
24.000 mA (輸出) 0.02%+ 2 位元
24.000 mA (Simulate) 0.02%+ 2 位元
電阻
15.0 至 400.0 Ω 0.15 Ω (exc. current 0.15 至 0.5 mA), 0.1 Ω (exc. current 0.5 to 2 mA)
401 至 1500 Ω 0.5 Ω(excitation current 0.05 至 0.8 mA)
1500 至 3200 Ω 1 Ω(excitation current 0.05 至 0.4 mA)
頻率
2.0 至 1000.0 CPM 0.05%
1.0 至 1100.0 Hz 0.05%
1.00 至 10.00 kHz 0.25%
波形: 5 V p-p 方波, -0.1 V offset
