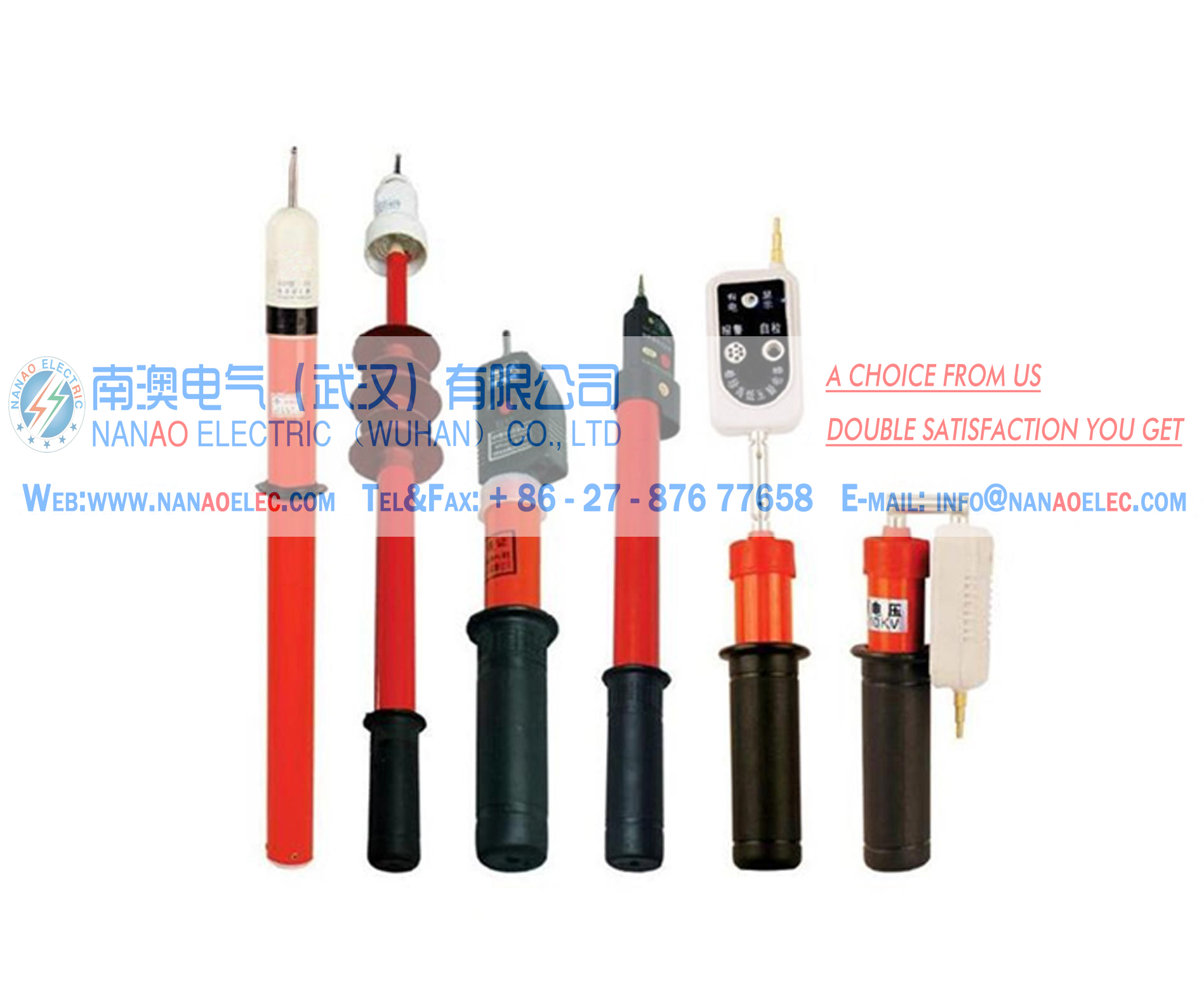

- 南澳电气NAECQ系列高压试验验电器 NAECQ series of high-voltage electroscope
南澳电气NAECQ系列高压试验验电器用途简介
高压试验验电器由电子集成电路制成的声光指示 ，性能稳定、测量数据可靠。具有全电路自检功能和抗干扰性强等特点。NAECQ系列高压验电器适用于 220V-500V 、6kV 、10kV 、35kV 、110kV 、220kV 、500kV 交流输配电线路和设备的验电，无论是白天或夜晚、室内变电所站或室外架空线上，都能正确、可靠地为您服务，是电力系统和工矿企业电气部门必备的安全用具。
南澳电气NAECQ系列高压试验验电器分类
按照适用电压等级可分为：0.1-10kV高压验电器、6kV、10kV高压验电器、35kV、66kV高压验电器、110kV、220kV高压验电器、500kV高压验电器。
南澳电气NAECQ系列高压试验验电器技术参数
（1）6kV 高压验电器
有效绝缘长度：840mm 手柄长度：500mm 节数：5 护环直径：50mm 接触电极长度：50mm
（2）10kV 高压验电器
有效绝缘长度：840mm 手柄长度：500mm 节数：5 护环直径：50mm 接触电极长度：50mm
（3）35kV 高压验电器
有效绝缘长度：1400mm 手柄长度：500mm 节数：5 护环直径：50mm 接触电极长度：50mm
（4）110kV 高压验电器
适用电压等级：110kV 回态长度60cm 伸态长度200cm
（5）220kV 高压验电器
适用电压等级：220kV 回态长度80cm 伸态长度300cm
（6）500kV 高压验电器
适用电压等级：500kV 回态长度160cm 伸态长度720cm
NAECQ series of high-voltage electroscope
Brief introduction
HV Detectors made by an electronic integrated circuit sound light indication, stable and reliable. With full circuit self-test function and anti-jamming features. NAECQ series HV Detectors for electric inspection 220V-500V, 6kV, 10kV, 35kV, 110kV, 220kV, 500kV AC transmission and distribution lines and equipment, whether it is day or night, indoors or outdoors overhead line substation stations are correctly and reliably serve you, the electrical power system and the industrial and mining sectors necessary safety equipment.
Classification of NAECQ series H.V Detectors
Accordance with the applicable voltage level can be divided into :0.1-10kVH. V Detectors, 6kV, 10kVH.V Detectors, 35kV, 66kVH.V Detectors, 110kV, 220kVH.V Detectors, 500kVH.V Detectors.
Can be divided according to type: NAECQ-2 (green light Indication type).
Technical Parameters
(1) 6kV H.V Detectors
Effective insulation Length: 840mm; Handle length: 500mm; Section: 5; retaining ring diameter: 50mm; contact electrode length: 50mm
(2) 10kV H.V Detectors
Effective insulation Length: 840mm; Handle length: 500mm; Section: 5; retaining ring diameter: 50mm; contact electrode length: 50mm
(3) 35kV H.V Detectors
Effective insulation Length: 1400mm; Handle length: 500mm; Section: 5; retaining ring diameter: 50mm; contact electrode length: 50mm
(4) 110kV H.V Detectors
Voltage rating: 110kV; back state length: 200cm; stretched length: 60cm
(5) 220kV H.V Detectors
Voltage rating: 220kV; back state length: 300cm; stretched length: 80cm
(6) 500kV H.V Detectors
Voltage rating: 500kV; back state length: 160cm;stretched length: 720cm
