CX-50型磁选管厂家，戴维斯分析管伟琴品牌磁选管批发
- 智能磁选管

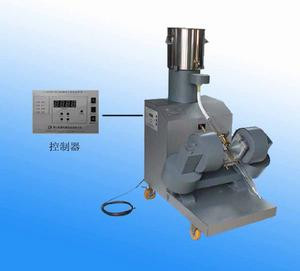

CX-50型磁选管就是戴维斯分析管。适应于矿山、冶金、地质等实验室。是用来测定强磁性矿石的磁性成分的含量。是检查这些矿石在分选过程中的一种设备。装机配有磁激电源，直接通电便可使用。
优点：
CX-50型控制器通过计算机内部的精准 测量与计算，将精准的磁场强度直接数字显示出来。 全智能型控制器，全自动化智能测量，一键操作！方便快 捷！数据精准！
磁选管 - 2.主要技术参数：
型号规格Model
CX-50
玻璃管直径Tube Dia.
mm
Ф50
振动频率vibrating FREQ.
次/min
70
两磁极头间隙 Doubltube Gap
mm
52
磁场强度Intensity
GS
0-2500/0-3500/0-4500可调
试料粒度Separating size
mm
-0.5
激磁功率exciting power
VA
<500
电压 Voltage
V
380/240/220
外形尺寸Overall Dimensions
mm
1000×580×1300
重量Weight
kg
258/342
CX-50 type intelligent magnetic separator
Technical Parameter of laboratory Magneric Tube
CX-50 Magnetic Tube or Davis Analyzing Tube is applicable in labs.of mine,metallurgical,geological and other industries.It is designed to determine magnetic content in strong magnertic mineral in the mineral processing operation. The product is produced by the only enterprise designated by the former Ministry of Geology and Mineral Mineral Resources,in compliance with the Industrial standards
Magnetic Tube is C Type electromagnet fitted with glass tube between pole ends to reciprocately move and swing.When the test materials to be separated pass therough magneric fields.the magnetic portion will be absorbed near the tube walls and the non-magneric portion will be washed down by water in the mechanical movement and discharged.. The product is produced by the only enterprise designated by the former Ministry of Geology and Mineral Mineral Resources,in compliance with the Industrial standards
Model
CX-50
Tube Dia.
mm
Ф50
vibrating FREQ.
次/min
70
Doubltube Gap
mm
52
Intensity
GS
0-2500/0-3500/0-4500
Separating size
mm
-0.5
exciting power
VA
<500
Voltage
V
380/240/220
Overall Dimensions
mm
1000×580×1300
Weight
kg
258/342
