X射线晶体定向仪
- 用 途：
- 此种机型为单晶衍射型普通精度定向仪,操作简便,强度较高,可用于压电晶体、光学晶体以及各种单晶晶体材料的检测。

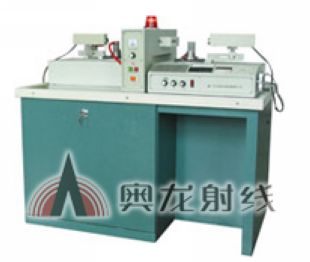

- YX-2产品特点：
此种机型为单晶衍射型普通精度定向仪,操作简便,强度较高,可用于压电晶体、光学晶体以及各种单晶晶体材料的检测。
YX-2型:精度±30",数字显示,最小读数10"
其它技术参数基本相同, 详见下面技术指标。
Features
YX-2 MODEL is single crystal diffraction type normal precision orientation instruments, which are easy for operation, with hig h intensity, applicable to the test of piezocrystal, optical crystal and other single crystal materials.
Model YX-2: precision ±30", scale display, minimum reading 10"
Other technical parameters are similar, please see the below followings.
技术指标
●输 入 电 源: 单相交流电压220V,50Hz,0.3kW
● X 射 线 管: 铜靶,风冷.管电压:30kV,管电流:0~5mA
●计 数 器: 盖革计数管
●时 间 常 数: 0.1、0.4、3秒三档
●测 角 范 围: θ=-10°~50°,2θ=-10°~100°
●角 度 读 数: 刻度环上标出最小读数为:2θ:1°,θ:1°;数字显示:度 、分 、秒
●角 度 调 整: 数字显示可设置在任意角度上
●狭 缝: 4', 5', 6'
●光 闸: 手动
●显 示: 数字角度显示
●综 合 精 度:±30"
●外 形 尺 寸: 1140mm(长)X650mm(宽)X1030mm(高)
●重 量: 150kg
Technical Parameters
●Input power: Single-phase AC voltage with 220V,50Hz,0.3kW
●X-ray tube: Cu target, air cooling. Tube voltage: 30kV,
Tube current :0~5mA
●Counter: Geiger counter
●Time constant: 0.1s, 0.4s, 3s
●Testing Range of angle : θ=-10°~50°,2θ=-10°~100°
●Angel reading: the minimal read values marked on degree scale:2θ:1°,θ:1°;
Digital Displaying:degree, minute, second
●Angel adjustment: number can be displayed at any angle
●Slit range: 4', 5', 6'
●Optical Shuttle: manual
●Displaying: digital angle displaying
●Precision: ±30"
●Size:1140mm(L)X650mm(W)X1030mm(H)
●Weight:150kg
YX-2H8产品特点:
此种机型是在YX-2型单晶衍射定向仪的基础上增加了承重直线导轨,并对样品台做了改进,可测1-30公斤,2-8英寸直径蓝宝石及各种单晶材料。
YX-2H8可配置 YA、 YB 、 YD 、YE 四种不同样品台, 客户可按需求选择上述配置。
YX-2H8型:精度±30",数字显示,最小读数10"
Features
On the basis of YX-2 model,this machine is added with bearing rail, improved sample table. It can measure Si sample with 1~30kg, 2~8 inches and various single crystal material.
YX-2H8 can be set with different goniometers YA 、 YB、 YD 、 YE. Customers can request the above configuration according to their needs.
Model Y X-2H8: precision ±30", digital display, minimum reading 10"
技术指标
●输 入 电 源: 单相交流电压220V,50Hz,0.3kW
● X 射 线 管: 铜靶,风冷.管电压:30kV,管电流:0~5mA
●计 数 器: 盖革计数管
●时 间 常 数: 0.1、0.4、3秒三档
●测 角 范 围: θ=-10°~50°,2θ=-10°~100°
●角 度 读 数: 刻度环上标出最小读数为:2θ:1°,θ:1°
●角 度 调 整: 数字显示可设置在任意角度上
●狭 缝: 4', 5', 6'
●光 闸: 手动
●显 示: 数字角度显示
●综 合 精 度: ±30"
●外 形 尺 寸: 1150mm(长)X665mm(宽)X1100mm(高)
●重 量: 170kg
Technical Parameters
●Input power: Single-phase AC voltage with 220V,50Hz,0.3kW
●X-ray tube: Cu target, air cooling. Tube voltage: 30kV,
Tube current :0~5mA
●Counter: Geiger counter
●Time constant: 0.1s, 0.4s, 3s
●Testing Range of angle :θ=-10°~ 50°,2θ=-10°~100°
●Angel reading: the minimal read values marked on degree scale: 2θ:1°,θ:1°
●Angel adjustment: number can be displayed at any angle
●Slit range: 4', 5', 6'
●Optical Shuttle: manual
●Displaying: digital angle displaying
●Precision: ±30"
●Size:1150mm(L)X665mm(W)X1100mm(H)
●Weight:170kg
YX－2H8型X射线晶体定向仪样品台
YX-2H8 X-RAY CRYSTAL ORIENTATION INSTRUMENT SAMPLE TABLE
YA样品台 YA model Sample Table
主要用于硅单晶或蓝宝石的大型晶体柱面及片的检测,增加了承重直线导轨,可测重1~30公斤,直径2~8英寸棒。同时加有气泵,可测2~8英寸晶片。
It is mostly used for testing the big crystal pillar and slice being composed with single crystal of Silicon and sapphire, whose weight is from 1 kg to 30kgs, and diameter from 2 inches to 8 inches. At the some time, adding the air pump to test the slice whose diameter from 2 inches to 8inches.
YB样品台 YB model Sample Table
主要用于硅单晶或蓝宝石晶体的端面检测,增加了承重直线导轨。样品台采用V型槽设计,V型槽的宽度可自动调整,便于不同规格大型圆柱形晶体在样品台上360°旋转。人性化的设计,使设备更合理,可测重1~30公斤、直径2~8英寸、长500mm棒材端面,同时加有气泵,可测2~8英寸晶片。
It is mainly used for the cylindrical crystal of silicon and sapphire single crystal face detection, increasing the load-bearing track. The sample stage V-groove design, and can automatically adjust the width of the V-shaped groove. To facilitate the different specifications of a large cylindrical crystal radial 360°sample stage rotation. User-friendly design, and equipment is more reasonable, measurable, weight 1~30 kg, 2~8 inches in diameter, 500mm rods long face, adding pump can be measured 2~8 inches of sheet samples.
YD样品台 YD model Sample Table
主要用于硅单晶片或蓝宝石晶片的外圆参考面的检测,吸气盘上接收X射线的位置采用开放式设计,克服了吸气盘遮挡X射线和定位不准的问题,同时可满足不同规格晶片参考边的检测。样品台的吸气泵可把2~8英寸的晶片吸住,使检测更加准确。
It is mainly used for the testing single chip of silicon and sapphire cylindrical reference surface, the suction plate to receive the location of the X-ray is the open design, to overcome the problem of the X-ray and positioning of the suction disk inorder to test the diffenert parameters erystal sample. The sample stage of the suction pump suck, 2~8 inch chip to make the detection more accurate.
YE样品台 YE model Sample Table
主要用于硅单晶和蓝宝石等晶片的多点测量,晶片可在样品台上手动旋转,如0°、90°、180°、270°等,可满足客户对晶片的特殊测量需求。
It is mostly used for testing the silicon and sapphire with more testing spots, whose testing sample stand can be rotated by operation, such as 0°90°、180°or 270°and others, in order to meeting the clients' special requirements.
