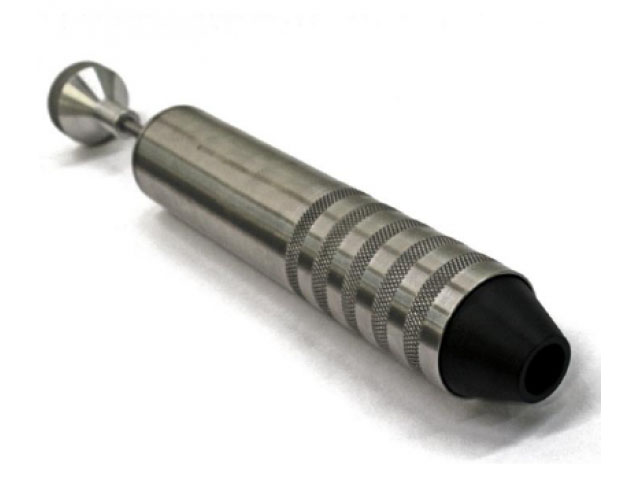

美国VEROCH 单档弹簧冲击锤
- 用 途：
- 单档弹簧冲击锤是为产品耐久进行冲击试验设计而成。
- 单档弹簧冲击锤 – VEROCH
VEROCH单档弹簧冲击锤是为产品耐久进行冲击试验设计而成。VEROCH单档弹簧冲击锤可以满足行业标准如IEC 60065, 60335, 60598, 60601, 61010等其他标准的要求。冲击锤是用来模拟对电子产品和电气产品的机械冲击。工厂将冲击锤的冲击能量设定到一个固定的值，冲击能量从0.2 - 1 Nm(J). 购买时亲注明所需的冲击能量。若只需要单一冲击力时VEROCH单档弹簧冲击锤是一个经济的选择，若冲击试验力需要调节时请选用万用弹簧冲击锤。
压缩弹簧加速将冲击组件推出撞击测试样品。产品测试时压下锥形杆的末端弹簧从一个锁定位置释放。此产品符合IEC 60068-2-75标准要求。
冲击能量： 0.20; 0.35; 0.50; 0.70; 1.0 Nm (Joule)
产品特色
- 依据相关标准制作而成
- 单档或多档产品都有
- 高质量原材料，尺寸规格正确
- 紧凑的手提箱包装
- 完整的用户手册
- 在美国本土认可的实验室出具产品检测报告
参数
整体长度 217mm ± 2mm
直径 50mm ± 0,5mm
冲击头硬度 100 Rockwell
冲击头材质 聚酰胺
冲击头半径 10 mm
冲击能量 0,14J – 1J. (工厂设定)
参照标准 IEC 60068-2-75Reference: IEC 60068-2-75
总量 1,25 Kg. ± 0,03 Kg
释放杆重量 0,06 Kg. ± 0,001 Kg
冲击元件重量 0,25 Kg. ± 0,01 Kg
Single energy impact spring hammer - VEROCH
The VEROCH Impact Spring Hammer - Single Energy is designed to perform impact tests for product durability. The VEROCH Impact Spring Hammer - Single Energy meets the testing needs of industry standards such as IEC 60065, 60335, 60598, 60601, 61010 among others. The hammer simulates mechanical impact to electronic products and electrical appliances. The impact hammer is set at the factory to one specific energy level. The energy range available is between 0.20 Nm to 1 Nm (Joule). The energy should be specified at the time of ordering. The VEROCH Impact Spring Hammer - Single Energy is an economical solution when you only need one energy level, if you need to adjust the energy you should consider the UNIVERSAL version.
A compressed spring accelerates a striking element to hit the sample undergoing test. The spring is released from a locking mechanism by pressing the cone-shaped end of the impact hammer against the product under test. This product meets requirements of IEC 60068-2-75.
VERSIONS
0.20; 0.35; 0.50; 0.70; 1.0 Nm (Joule)
FEATURES
- Instrument manufactured according to the relevant standards
- Single and Universal models available
- Produced with high quality material and correct dimensions
- Supplied in a compact carrying case
- Comprehensive user manual
- Calibration Report issued by accredited LAB located in US territory
Specs
Body Length 217mm ± 2mm
Diameter 50mm ± 0,5mm
Hammer head Hardness 100 Rockwell
Hammer head material Polyamide
Hammer head radius 10 mm
Impact energy 0,14J – 1J. (fixed at the factory)
Reference IEC 60068-2-75Reference: IEC 60068-2-75
Weight of body 1,25 Kg. ± 0,03 Kg
Weight of release cone 0,06 Kg. ± 0,001 Kg
Weight of striking element 0,25 Kg. ± 0,01 Kg
