丹麦水手SAILOR 6391船用航行警报接收机 Navtex System NAVTEX船用航行警报接收机

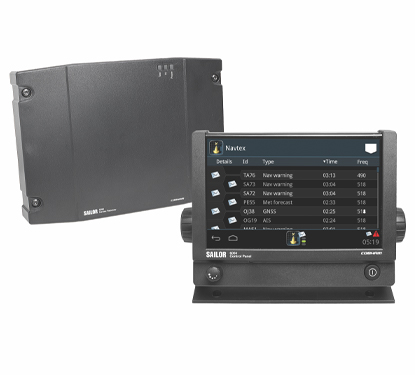

The Cobham SATCOM SAILOR 6391 Navtex System consists of the SAILOR 6390 Navtex Receiver, which receives Navtex messages on the international Navtex frequencies (490 kHz, 518 kHz and 4209.5 kHz), and the SAILOR 6004 Control Panel, a 7” touch screen that provides excellent viewing clarity in all light conditions so all messages can be seen and understood.

As a black box system, with separate touch screen user-interface, it introduces a new approach that enhances safety and efficiency, while being fully SOLAS compliant. It is a next generation system that offers new installation and operation possibilities today, with the potential to become part of the fully networked bridge in the future.

TECHNICAL SPECIFICATIONS
Navtex Receiver 490 kHz, 518 kHz and 4209.5 kHz simultaneous
reception
SW updatable to future 500 kHz NAVDAT
Support for both active and passive antenna
(12V@60mA antenna supply)
Weight 1.3 kg
Temperature -15°C to 55°C - Operational
-15°C to 55°C - Storage
Sensitivity 490-518 kHz - 12dBuV@10ohm/150pF
 - 6dBuV@50ohm
4209,5 kHz - 12dBuV@10ohm/150pF
 - 6dBuV@50ohm
Excellent interference rejection and blocking immunity
Power Supply and Consumption
DC input range (isolated) 12 to 24VDC nominal supply voltage (10.8 - 31.2VDC)
Typical power consumption Typical 6.5W
