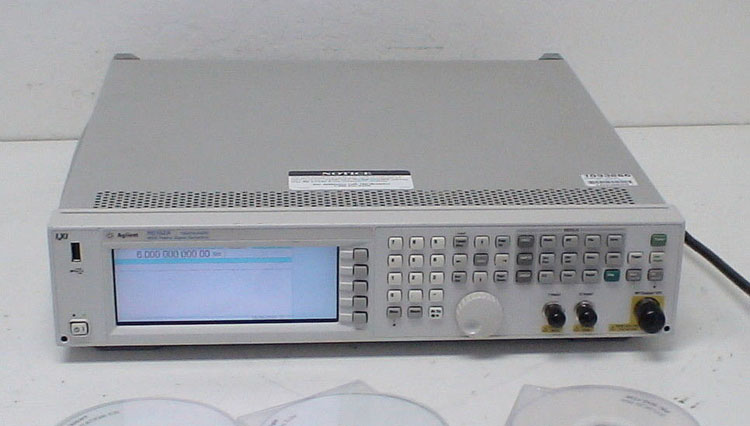

长期出售安捷伦N5182A N5182A信号源
- 这真不是您需要的产品？
- 品 牌：
- Agilent/安捷伦
- 长期出售安捷伦N5182A N5182A信号源
≡≡≡≡≡?东莞市欧诺谊电子仪器有限公司?≡≡≡≡≡
直接联系人：欧先生：13580879166（微信同号/欢迎来电咨询）
销售联系人：李小姐：13560813766（微信同号/欢迎来电咨询）
在线ＱＱ：2881482762 2209248904（全天在线/欢迎加Q咨询）
公司电话：0769－87910706 联络传真：0769-87910705
全国免费服务热线：400-888-4191 公司网址：http://www.ony5117.com
温馨提示：如果您找不到联系方式，请在浏览器上搜索：<欧诺谊－欧先生>
------------------------------------
Main characteristics and technical indexes
Signal representation
100 kHz ~ 3 or 6 GH
Use highly reliable, fast switching electronic attenuator at 3 GHz >+23 dBm
W-CDMA dynamic range: dBc = -73 (power +5 dBm)
At the same time in list mode, frequency, amplitude and waveform switching speed is
less than or equal to 900 Mu s
Modulation and scanning
AM, FM, M and pulse
ASK, FSK, MSK, PSK, QAM
In the digital step and list scanning mode, the frequency, power and waveform
synchronization switch
Baseband generation and signal generation
With a real-time equalization of 100 MHz built-in I/Q baseband generator to achieve
excellent EVM performance
Up to 64 MSa playback memory and 800 MSa memory
Reference signal generation: LTE, HSPA+, WiMAX, WLAN, DVB-H, DAB, MATLAB - signal
generation
Multi channel baseband generation using digital I/O, MIMO fading and RF to RF
fading as well as N5106A PXB baseband generator and channel emulator
Automatic and communication interface
100BaseT LAN, LXI class B standard, USB 2 and GPIB
SCPI and IVI-COM drivers
Backward compatible with all ESG, PSG, 8648 signal generators and other
manufacturers of signal generator
describe
With fast frequency and amplitude switching capability, high reliability and easy
to maintain the characteristics of self -- all these all are in two frame.unit
(2RU) -- Agilent MXG simulation provides specially optimized generator
manufacturing industry for the production and application can provide accurate and
repeatable reference signal.Agilent MXG analog signal generator by increasing the
throughput the running time, and characteristics of saving rack space, make your
instrument has higher value. The RF performance of scalable Agilent, MXG analog
signal generator can be realized easily configured to meet your specific test
needs, generating local oscillator and clock instead of L, continuous wave
interference, and modulation signals for analog communication in the system (such
as amplitude modulation, frequency modulation and phase modulation).
Provide first class RF performance for future component design
With high power and distortion performance of the best combination, MXG vector
signal generator can ensure accurate component design verification. And signal
generation tools flexible when used in combination (e.g. Signal Studio software),
low ACLR (for 1 carrier W-CDMA, dBm +5 -73 dBc) can make the MXG suitable for W-
CDMA to become the WiMAX. Technology of the complete solution.
Maximize normal run time
Simple self maintenance characteristics can shorten the time of maintenance and
performance verification, with the field replaceable components to control the
downtime within 2 hours.
Transition to the new EXG X series signal generator, generating true performance
EXG model not only has the value and performance of the first generation of MXG,
also provides enhanced waveform memory and bandwidth, reverse power protection and
spurious level.EXG can also use real-time baseband generator, high output power,
the built-in function generator option offers the performance and function
expansion.
我们的优势：
品种齐全，货源充足，存库雄厚，服务快捷，维修能力强。
欢迎来电!上门看货!您的满意是我们的追求！
(本公司大量供应二手进口仪器:如网络分析仪,频谱分析仪,音频分析仪器,视频分析仪器,高
频信号源,无线电综合测试仪等高频仪器,公司长期专业销售、租赁、维修、计量、出售高频二
手仪器!! )
